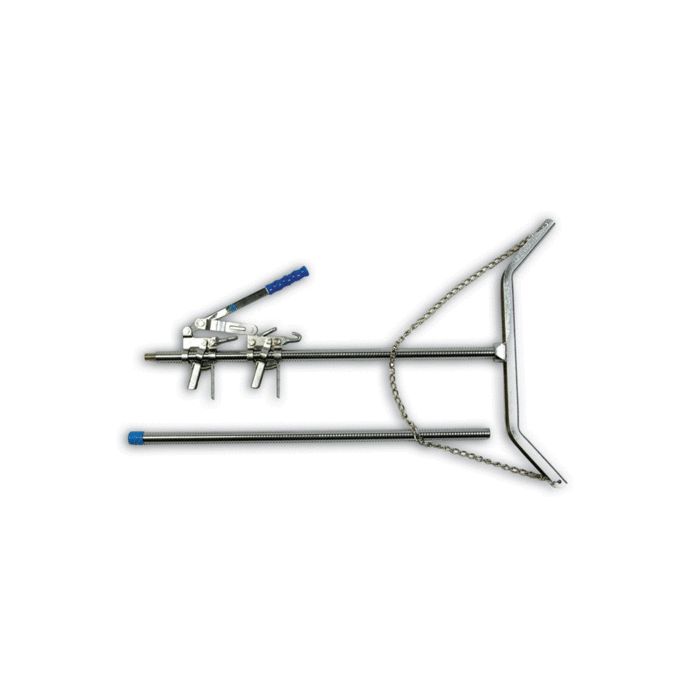

Calf Puller-Champion

Single-action calf puller designed for one-person operation. Easy to assemble. Deep cut threads on pole prevent ratchet from slipping. Three hooks for OB chain or OB strap attachment. Extra-long pipe sections for large breed cows. Economical pricing. Deeper, nickel-plated grooves on the pole allows easier pulling. Reinforced breech. Extra long pipe sections for large breed cows. Blue molded plastic handle for comfortable cranking. Two longer ratchet release levers are formed to the fingers. Ratchet moves smoothly up and down pole. Deeply cut threads in pipe sections prevent ratchet from slipping.

INSTRUCTIONS:
Thread rod completely together. Position breech spanner at floor of birth canal on pin bones of cow. Secure location with web belt.

PLEASE NOTE: Allowing the breech spanner to slip lower than the pin bones will dramatically increase chances of damaging your equipment and injuring the calf.

Slip breech spanner onto cone-shaped end of rod. Position ratchet close to breech. Attach one chain to each leg as recommended. For easiest and safest delivery of the calf, cranking should only occur while the cow presses.

During delivery, position Champion Calf Puller horizontally at first (relative to standing cow). Gradually angle the end of the pole toward the ground as delivery progresses. The direction of traction and that of the fetus as it passes through the birth canal is in that of an arc. Any pressure used to position rod should be applied at mid-point of rod.
Use caution when using the Champion Calf Puller. Too much pressure will cause damage to the calf.

Calf Puller-Champion Highlights:

• SKU: 25192
• Manufacturer: Agri-Pro Enterprises
• One-person operation
• Nickel-plated heavy pole
• Easy-to-store two-piece pole
• Molded plastic handle for comfort
• Three hooks to attach to OB chain/strap
• Blue molded plastic handle for comfortable cranking
